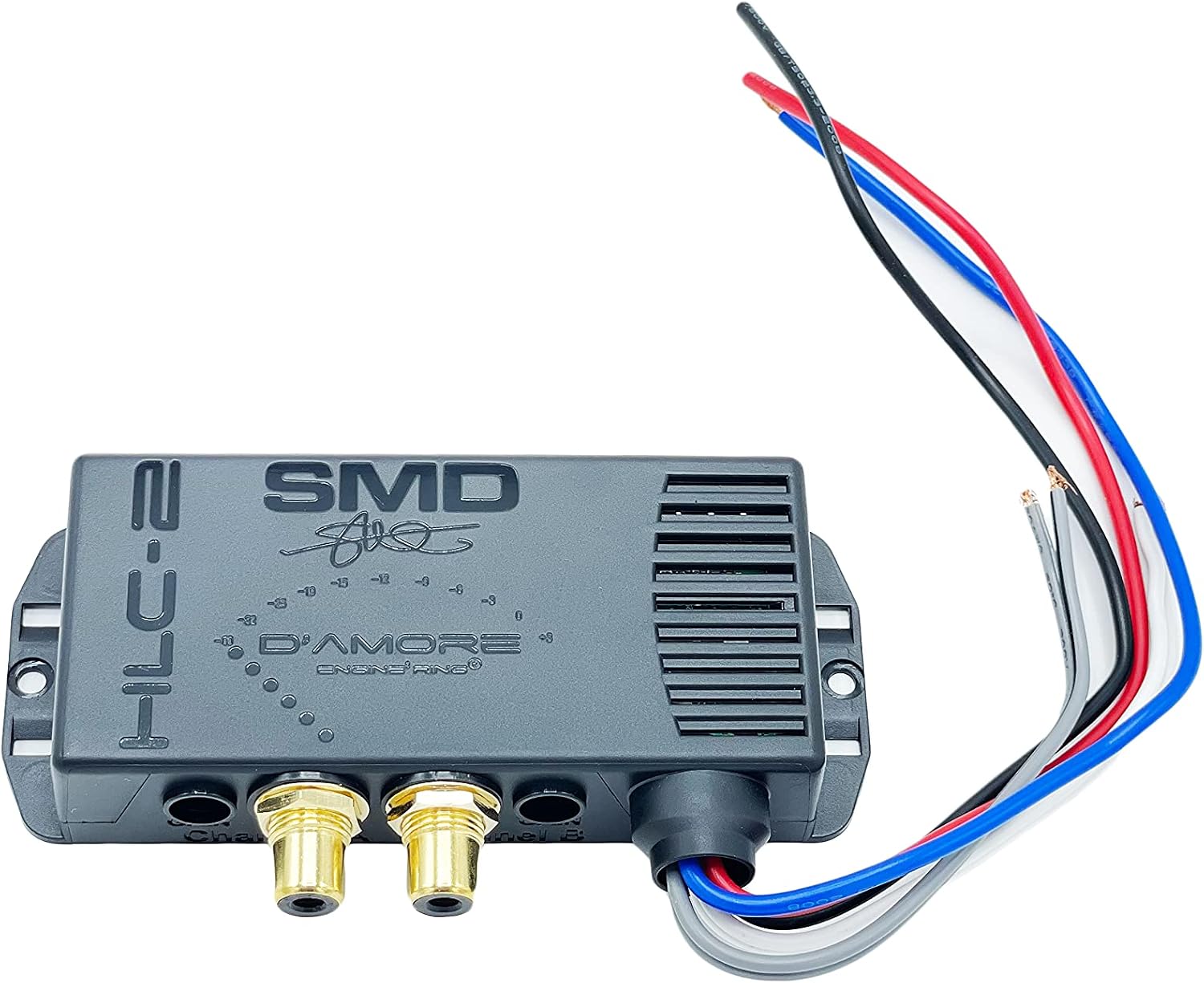

Steve Meade Designs Active High Level Converter HLC-2

Connect amplifiers to your factory radio The typical purpose of the HLC-2 is to bridge the gap between factory audio systems and aftermarket audio amplifiers. With it's ability to accept up to a 40V RMS BTL audio signal it is suitable for all situations. Small enough and efficient enough for any vehicle The HLC-2 is the cleanest, smallest, and lightest active speaker level to RCA level converter. Mounting it is as easy as using a couple of zip ties using the built in zip tie slots. Small enough in size and power consumption for motorcycles, side by sides, golf carts, scooters and the like. Just a little bigger than a deck of playing cards, and consumes 1.02 watts of power (80mA on 12.6V) Big input and big clean output HLC-2 can accept up to a 40V RMS BTL audio signal, and output up to 10V RMS single ended output signal with a super low output impedance of 100 ohms, and a THD+N level of less than 0.003% Could also be used as a line driver or phase inverter HLC-2 can output up to 10V RMS single ended output signal with a super low output impedance of 100 ohms. This driving ability is so strong that even when driving 10 amplifiers it can output 9V RMS. Just solder some female RCA ends to the high level input wires and you've got yourself a killer line-driver. Why would I want a phase inverter? If you have a pair of identical half bridge amplifiers (Like our E series subwoofer amplifiers) you could bring the signal out of the pass through RCAs of the 1st amplifier and into the high level input of the HLC-2 (with female RCAs soldered to the high level inputs, polarity switched) and then use the output of the HLC-2 into the 2nd amplifier. This would effectively "strap" them, or put them in series. What is included? The HLC-2 Owner's manual About the Design When you pick up the HLC-2, know that you are holding a precision piece of equipment. If treated as such it should provide you with many years of reliable service. Here are some of the features highlights and specs. Military grade high speed power supply for low noise and wide input range. Runs on 6V - 18V, no problem with 16V systems or cars with STOP/START Audiophile grade Operational Amplifiers (op-amps) Texas Instruments / Burr Brown op-amps for low noise and distortion Military grade FR4 double layer (HLC-2) or quad layer (HLC-2X) circuit board. High Frequency filtering for removing Class D noise from factory radio output Class A/B output Specification Operating voltage range 6 - 18 VDC Freq Resp (gain min) 10 - 40,000 Hz +/- 0.3dB Signal to Noise Ratio >115dBA 20 -20kHz THD+N 20Hz – 20,000Hz <0.005% THD+N 1 kHz, 4V RMS <0.003% Max Input Voltage 40 V RMS BTL Max Clean Output Voltage >10 V RMS Current Draw @12.6V HLC-2 80mA Current Draw @12.6V HLC-2X 120mA Crossovers (HLC-2X only) 12dB/Oct 60, 100, 150Hz Output Impedance 100 ohms Power Indicator Blue LED Dimensions, Inches 4.10 x 2.19 x 0.80

• Max input voltage high level: 40V RMS
• Signal to Noise: -113dB
• Current Draw: 80mA
• Output Impedance: 100 ohms
• Output Voltage RCAs: 10V RMS
